The Lyonnais warping is of a more or less luxurious manufacture in the choice of the woods used and the more or less shaped shape of the pieces that compose it.
It is composed of a drum one meter in diameter with 8 vertical uprights arranged around a central axis flanked at each end of a metal rod, the top of which is clearly longer than the bottom.
This movable drum is fixed on a frame formed of 4 vertical uprights of approximately 2 meters in height and two tall crossbars and two crossbars in the shape of a cross whose center is pierced by a hole receiving the metal rods of the shaft Of the drum. A wheel attached to the bottom of the drum, on its central axis, causes it to rotate.
One of the 4 studs of the frame passes through the stud which slides vertically on it. The stud slides on this upright in an upward or downward movement according to the direction of rotation of the drum. Indeed, a cord connects the stud to the drum via a pulley and winds (or unwinds) around the upper metal rod of the drum axis, thus forcing the stud to be mounted or lowered on the drum Amount of the frame.

CANTRE AND BENCH
The warping machine is accompanied by a bench with a crank and a belt wheel connecting the lower drum of the warping drum, drawing an eight. The warmer sitting on this bench maneuvers the crank to turn the warper.

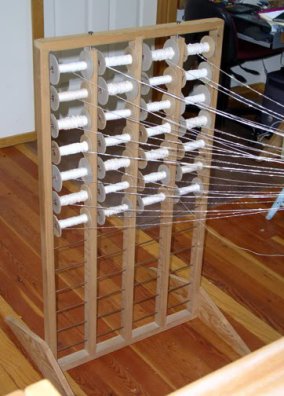

The warping machine is also accompanied by a creel that receives the unwound wire pothes which will make it possible to form the chain on the warping machine.
On this engraving we see a warping machine sitting on its bench and maneuvering the warping machine, and we distinguish the threads coming from the creel joining on the pad of the warping machine before winding on the drum of it .
